Quality UV Exposure Unit

Shipped Worldwide!

Vacuum Exposure Units

AY315

AY321

For the ultimate in reproduction definition, a vacuum unit has to be the choice.

Unlike the pressure pad units the AY series use a vacuum to ensure the artwork and material to be exposed are held in perfect contact.

When fine tracks are required on a PCB or detailed definition on a graphic reproduction, an AY vacuum unit should be chosen.

All the AY units now feature the latest rubber blanket and glass vacuum system for the ultimate exposure resolution.

A 0-500 seconds is fitted to give the operator greater flexibility the vacuum pump activation and bleed is controlled by separate switches independent of the timer.

A vacuum gauge is also fitted in the machine enabling the operator to check the level of vacuum before activating the UV tubes. All units come complete with an IEC socket and moulded 13 amp plug.


We offer four models in the AYrange (with vacuum) which are:- AY315, AY321, AY360 and AY380.



Our Exposure Units are able to expose many types of ‘Photo Resist’ plates which use UV light. The ‘power’ of our UV Tubes is 365nm. If you are unsure, please check with your plate supplier if this is adequate.


You cannot expose screens  (as used in screen printing) with any of the AY/AZ range below. For making these, please refer to our UV Ultra Vacuum Unit above.

Model
Working Area*
Timer
UV Output
Dimensions
Weight
AY315:  £884.00+VAT
13" x 14" /  330 x 355mm
0 -500 Seconds
6 x 15w
550 x 485 x 170mm
16.0kg
AY321:  £1162.00+VAT
13.8" x 21" / 350 x 535mm
0 -500 Seconds
6 x 20w
720 x 580 x 170mm
22.0kg
AY360:  £1362.00+VAT
22.6" x 26.8" / 575 x 680mm
0 -500 Seconds
10 x 20w
765 x 730 x 178mm
34.0kg
AY380#  £2539.00+VAT
20.4" x 36.5" / 520 x 927mm
0 -500 Seconds
12 x 20w
890 x 1031 x 215mm
84.0kg

* Vacuum pip is 25mm diagonally in from top left corner of the exposure unit
# AY380 uses ‘myler’ to create vacuum and not rubber and glass

The AY range of exposure units are made to order with a lead time of about 3-4 weeks. Special orders such as these cannot be returned for a refund.

All prices and designs subject to change without prior notice.


British Made Vacuum Exposure Units - Single Sided

A double sided vacuum UV is an essential tool for the production of double sided PCBs.


The ability to expose both sides of the board at once eliminates the immense problem of artwork registration for two separate exposures on a single sided unit.


The AZ units are similar to the AY range except that they have flexible mylar film in front of the tubes in the lid which closes onto a glass base beneath which is located another set of UV tubes.

The units feature a switch to enable the bottom set of tubes to be turned off for single sided exposures. All three units are supplied complete with an IEC socket and moulded 13 amp plug.


Model
Working Area*
Timer
UV Output
Dimensions
Weight
AZ210:  £983.00+VAT
10.2” x 14” / 260 x 355mm
0 - 500 Seconds
8 x 15w
550 x 485 x 170mm
16.0kg
AZ220:  £1340.00+VAT
13.8” x 21” / 350 x 535mm
0 - 500 Seconds
12 x 20w
720 x 580 x 170mm
25.0kg
AZ326:  £2736.00+VAT
20.4” x 36.5” / 520 x 927mm
0 - 500 Seconds
24 x 20w
890 x 1031 x 215mm
90.kg

* Vacuum pip is 25mm diagonally in from top left corner of the exposure unit.

The AZ range of exposure units are made to order with a lead time of about 3-4 weeks. Special orders such as these cannot be returned for a refund.

All prices subject to change without prior notice.


British Made Vacuum Exposure Units - Double Sided

Do you require Shears to cut PCB’s, Polymer Plates,
 Sublimation Metal to size?

Please visit our dedicated website for full details and prices at

www.shearsandcutters.co.uk

Copyright 2013    Creative Printers of London      Tel: 01708-731294               Contact us

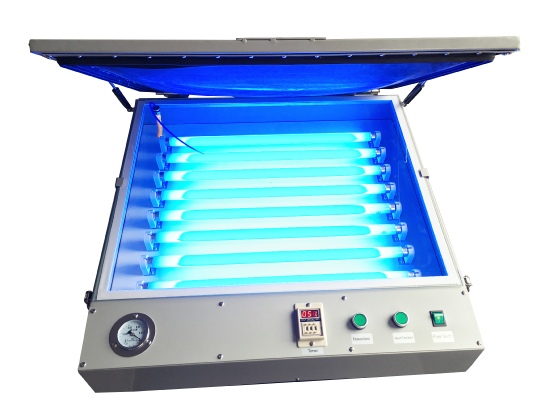

A large and low cost vacuum Exposure unit. Ideal for making Screens for Screen Printing, PCB’s Polymer Plates etc.  Vacuum ensures a perfect contact between artwork and media.


Specifications:-

Maximum screen frame size is
500mmx600mm (20”x24”)

Power of lamps: 8x20 Watts each

Light source: UV Light

Gross weight: 43kgs

Power: 220v/50Hz

Digital display

Price: £699.00+VAT
(Shipping extra)


    High Quality British Designed Vacuum UV Exposure Units

Not suitable for exposing screens as used in screen printing
